| Model： | R18-B24-RNSA |
| Product Name： |

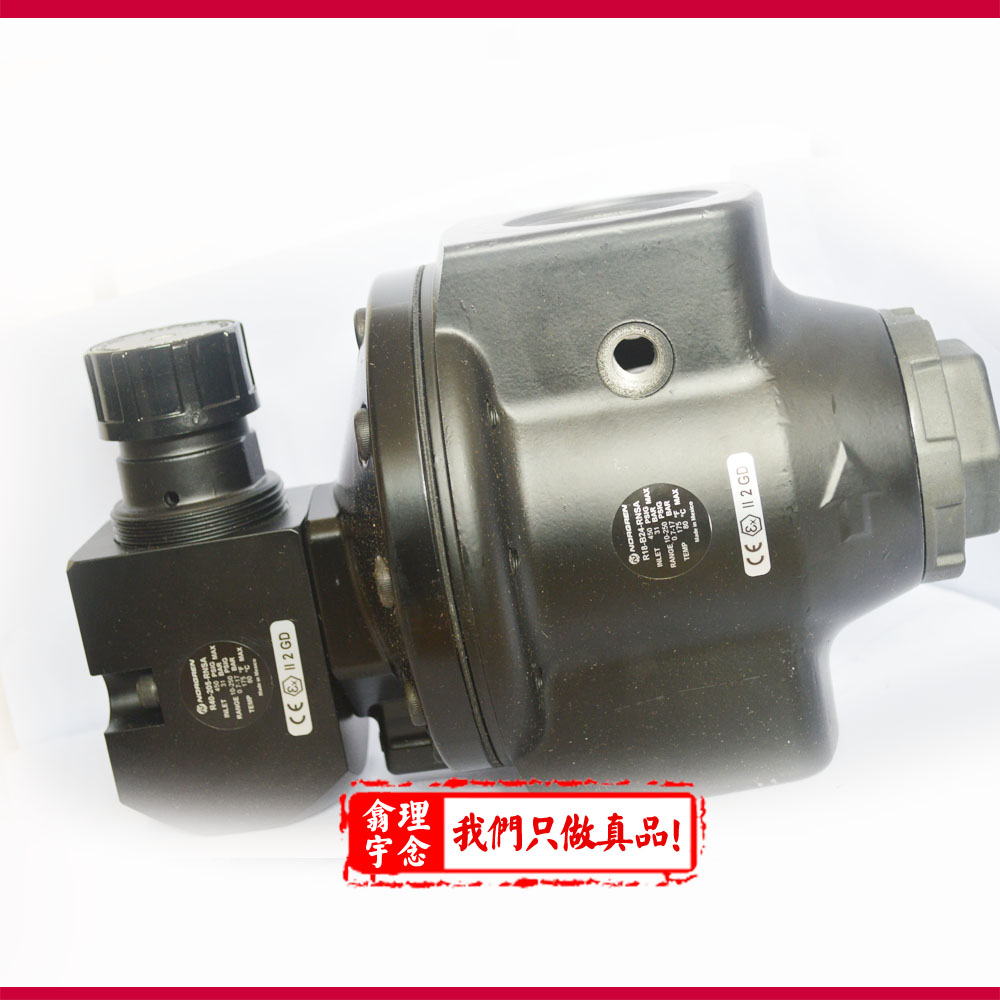

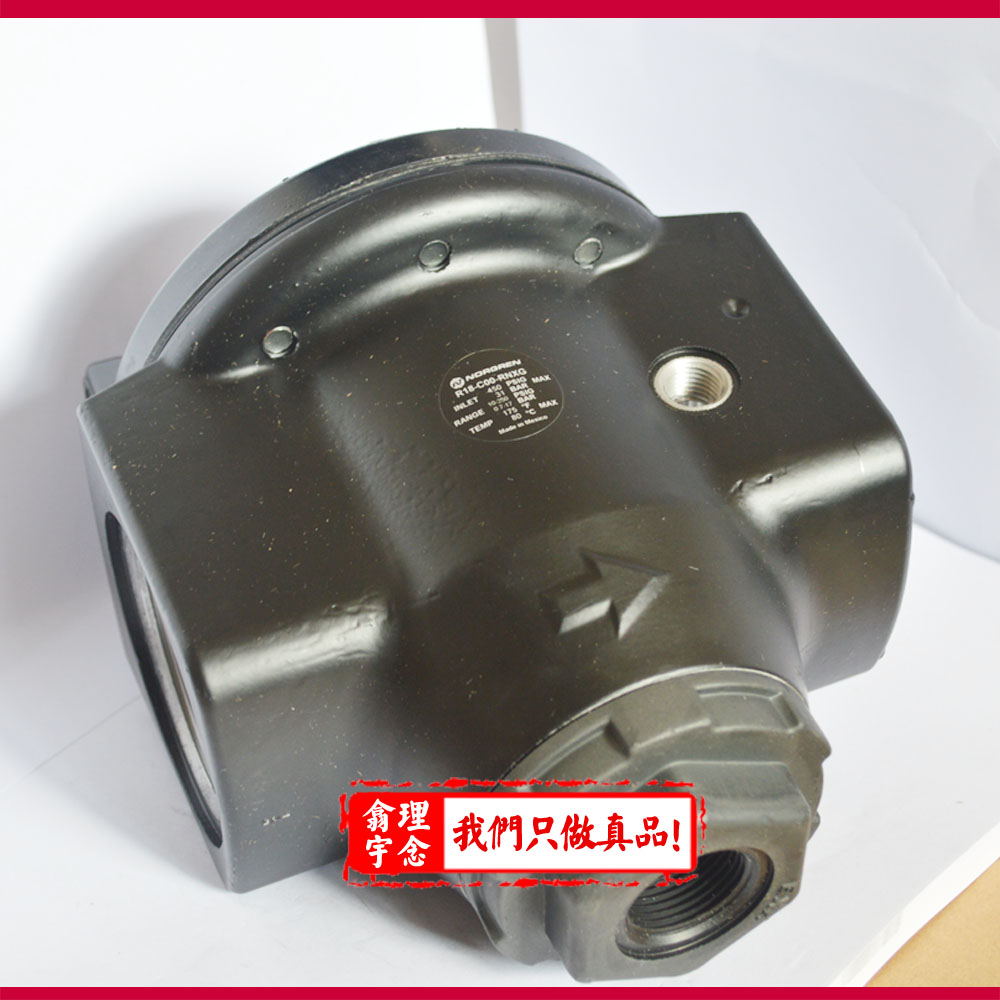

18 Series General Purpose Pressure Regulator 1 1/2" and 2" Port Sizes |
| ISO Symbols |
|
| Product features: |
The R18 with the conventional integral pilot provides good pressure regulation, rapid response to changing flow demands, and excellent stability. l The R18 with the feedback integral pilot provides superior pressure regulation under changing flow demands where changes in flow demand are not sudden or cyclic. l Balanced valve minimises effect of changes in inlet pressure on outlet pressure l Constant bleed feature in pilot regulator provides quick response and minimum dead-band l Exceptionally high relief flow l Full flow gauge ports l Low torque, non-rising adjusting knob l Integral locking device on knob adjustment |
| Technical Data | |
| Fluid: | Compressed air |
| Operating temperature： | ：-18° to +80°C (0° to +175°F) * |
| Gauge ports: |
1/4" PTF with PTF main ports G1/4 with ISO G main ports R1/4 with ISO Rc main ports |
| Exhaust port: |
3/4" PTF with PTF main ports G3/4 with ISO G main ports R3/4 with ISO Rc main ports |
| Maximum bleed rate: |
0,12 dm3/s (0.25 scfm ) at 3,5 bar (50 psig) outlet pressure. |
| Materials: |
Body: Aluminium Bonnet: Aluminium Bottom Plug: Aluminium Valve: Integral Pilot Regulator: Teflon Pilot Operated Regulator: Aluminium Elastomers: Nitrile |
| Ordering Information： |
Models listed include R40 conventional integral pilot, relieving diaphragm, without gauge, 0,3 to 8,5 bar (5 to 125 psig) outlet pressure adjustment range*, and ISO G threads. |
| Pilot Regulator Type： | R41 Feedback ** |
| Port Size： | 1 1/2" |
| Diaphragm： | Relieving |
| Gauge： | Without |
| Outlet Pressure Adjustment Ranges： | Without (standard） |
| Port Threads： | PTF |
